SHANTUI bulldozer 160hp SD16TF pilot control bulldozer logging woods bulldozer winches

  • 1 - 4 Units
    $94,500.00
  • >=5 Units
    $92,500.00
Engine Brand:
Other
Power(W):
125kw
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Machine Weight:
17000kg
Dimension(Long * Breadth * High):
5677x3500x3402mm
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts, Engineers available to service machinery overseas
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Place of Origin:
Heilongjiang, China
Brand Name:
SHANTUI
Model Number:
SD16F
Condition:
New
Moving Type:
Crawler Bulldozer
Dozing Capacity:
4.5m3, 4.5/4/4.3
Hydraulic Cylinder Brand:
Imported
Hydraulic Pump Brand:
Imported
Hydraulic Valve Brand:
Imported
UNIQUE SELLING POINT:
High operating efficiency
Engine:
SC11CB184G2B1
Gross Power:
131/175/1800
Optional model:
all kinds of type bulldozer
Optional engine:
WD10G178E25
Rated power:
120kw(160hp)
Min. fuel consumption:
214 g/kW.h
Other brand:
HBXG/PENGPU
Supply Ability
Supply Ability:
20 Unit/Units per Month
Packaging & Delivery
Packaging Details
Nude packing by RORO shipment;
Port
Shanghai
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 To be negotiated






Product Description

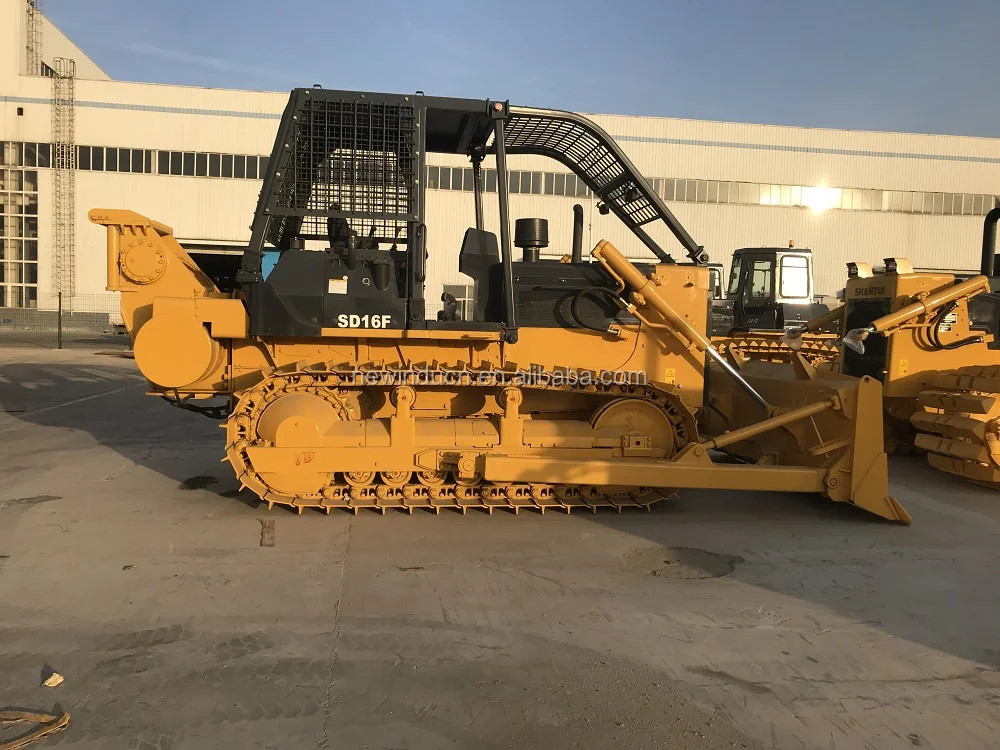

Shantui 160HP SD16F Bulldozer with Winch

Shantui’s best-seller worldwide, this is a medium-duty workhorse that comes off the factory line in various configurations for specific work environments, e.g., desert, swamp, forest, high altitude, etc. It has a Tier IIIb famous engine for European markets and optional engines for other markets. The SD16 provides high performance with strong reliability, with Shantui’s trademark value.





Performance Paramete



160 HP
SD16
Technical

 specifications:

Blade TypeStraight-tiltAngleU-Blade
Min. ground clearance:400 mm400 mm400 mm
Ground pressure:0.072 MPa0.074 MPa0.074 MPa
Min. turning radius:4.466 m4.513 m4.545 m
Gradeability:30°30°30°
Track gauge:1880 mm1880 mm1880 mm

ENGINEModel & type

SC11CB184G2B1/

WD10G178E25; water-cooled, in-line,

4-stroke injection direct

Rated power120 kW
Number of cylinders6—126 x 130 mm (bore x stroke)
Piston displacement9.726 L
Min. fuel consumption214 g/kW·h
Maximum torque765 N·m@1300 rpm

POWER
TRANSMISSION
SYSTEM
Torque converter3-element, 1 stage, 1 phase
TransmissionPlanetary gear type, power-shift, forced lubrication
Main drive

Spiral bevel gear, single stage speed reduction,

splash lubrication

Steering clutch

Lubricated, multidisc, spring loaded,

hand hydraulically separated,

 inter-linking with steering brake

Steering brake

Lubricated, floating band structure,

foot brake with hydraulic booster

Final drive

2-stage speed reduction of spur gear,

splash lubrication
