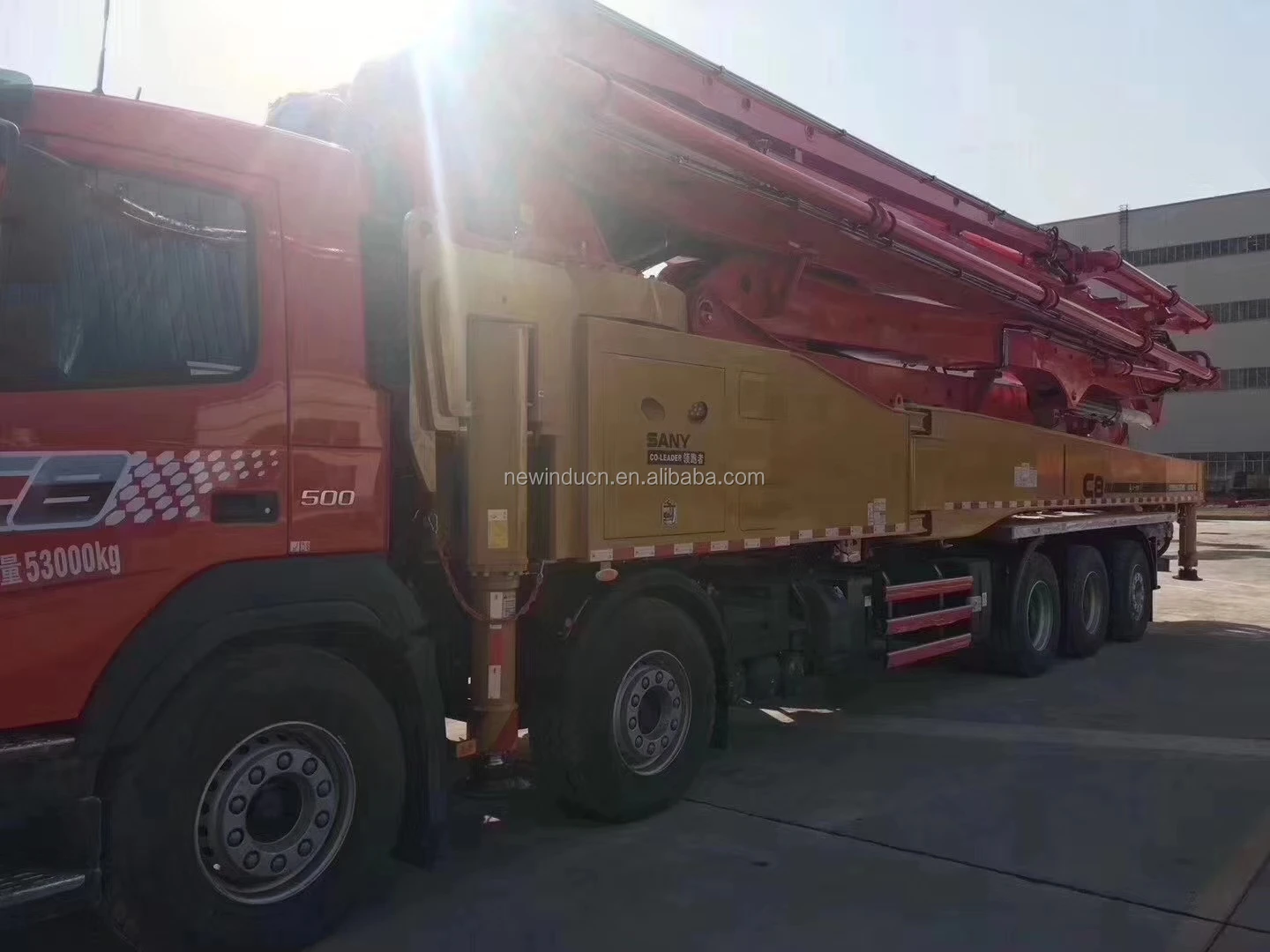

46m concrete pump SY5330THB 46 truck mounted concrete pump for sale

FOB Reference Price:Get Latest Price
$240,000.00 - $350,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
SY5330THB 46
Power(W):
259kw
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 10 Sets)
Customized packaging (Min. Order: 10 Sets)

More

Graphic customization (Min. Order: 10 Sets) Less
Samples:
$300.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Dimension(L*W*H):
12600mmx2495mmx3990mm
Weight:
6000kg
Warranty:
1 year
Condition:
New
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support, Engineers available to service machinery overseas
Place of Origin:
Jiangsu, China
Brand Name:
SANY
Certification:
ISO
Power Type:
Diesel
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
UNIQUE SELLING POINT:
Fully hydraulic system
Chassis:
Sany
Min. Turning Radius:
12500mm
Pumping Capacity Index:
586MPa*m3/h
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Comply with export packaging requirements
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Product Description
46m concrete pump SY5330THB 46 truck mounted concrete pump for sale

Truck mounted concrete pump 52m

Unit

Parameters

HDT5410THB-52/5

Main technical parameters in working condition
Theoretical Productivity

m3/h

125

Pumping Capacity Index

MPa.* m3/h

586

Max. Concrete Pressure

Mpa

8.5

Hopper Capacity

L

700

Feeding Height

mm

1400

Model of Distributing Valve



S pipe valve

Max. operation Radius

m

47.8

Max. operation Height

m

51.8

Max. operation Depth

m

39.8

open height of aggregate carrying pipe

mm

9400

Distance between Front Landing Legs

mm

10295

Distance between Rear Landing Legs

mm

10650

Distance between Front and Rear Landing Legs

mm

10310

Diameter of Delivery Pipe

mm

125

Length of rear hose pipe

m

3

Rotary Range of Distributing Boom

365°
Number of Boom Sections

5
Rotary Angle of Each Boom Section

90/180/
180/180/270°
Close-control Distance

m

33
Remote-control Distance
m
200
Main technical parameters in
driving condition
Max. Traveling Speed
km/h
80
Min. Turning Radius
mm
12500
Brake Distance
m
10
Approach Angle

16°
Departure Angle

11°
Chassis Model

CYH51Y

Wheel Base between the First and the Second Axle
mm
1800
Wheel Base between the Second and the Third Axle
mm
5000
Wheel Base between the Third and the Fourth Axle
mm
 1350
Front Tread
mm
2022
Rear Tread
mm
1830
Max. Engine Power
kw
259(2100r/min)/275 (2200r/min)
Max Engine Torque
N.m
1460(1100r/min)/1500 (1100-1600r/min)
Overall Dimension
(length×width×height)
mm
13990*2500*4000
Full-load Total Weight
kg
42000
