Low Price Zoomlion ZRT300 30 ton Hydraulic Rough Terrain Crane

FOB Reference Price:Get Latest Price
$170,000.00 - $180,000.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
ZRT300
Shipping:
Support Sea freight
Lead Time:
Quantity(Units) 1 - 5 >5
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Max. Lifting Height:
645
Feature:
Other
Condition:
New
Place of Origin:
Hunan, China
Brand Name:
Zoomlion
Certification:
ISO
Application:
Construction
Rated Loading Capacity:
635
Rated Lifting Moment:
735
Max. Lifting Load:
925
Span:
690
Product name:
Zoomlion ZRT300 Rough Terrain Crane
Type:
Truck Crane
Capacity:
30000
Power Source:
380
Applicaton:
Construction
Hydraulic parts:
OMFB
Power:
Hydraulic System
Packing:
Normal Carton
Crane type:
Truck Crane Mobile Crane Hydraulic Crane
Lift Speed:
3m-4m/min
After-sales Service Provided:
Overseas service center available
Warranty:
1 Year
Supply Ability
Supply Ability:
20 Unit/Units per Month Zoomlion ZRT300 Rough Terrain Crane
Packaging & Delivery
Packaging Details
Zoomlion ZRT300 Rough Terrain Crane Could be loaded by Flat Rack, Roro, Bulk Vessel.
Port
Shanghai
Lead Time :
Quantity(Units) 1 - 5 >5
Est. Time(days) 20 To be negotiated

Low Price Zoomlion ZRT300 30 ton Hydraulic Rough Terrain Crane

Type

Ser. No.

Item

Unit

Value

Working performance

1

Max. rated lifting weight × working radius

kg.m

35000×3.0

2

Max. lifting moment of basic boom

kN.m

1344

3

Max.lifting moment of longest boom

kN.m

870

4

Max. lifting height of longest boom

m

31

5

Max. lifting height of jib

m

46

Dimensions

6

Outline dimensions (L×W×H)

mm

11935×2980×3600

7

Distance between outriggers (Longitudinal × transversal)

mm

6810×6800

8

Main boom length (completely retracted – completely extended)

mm

9800~31000

9

Jib length (completely retracted – completely extended)

mm

9088~15028

10

Main boom angle of elevation

°

-3~78

11

Swing range



360°continuously

Working speed

12

Max.speed of single rope on the drum of main winch

m/min

150

13

Boom extension time

s

70

14

Boom retraction time

s

75

15

Boom derricking up time

s

46

16

Boom derricking down time

s

47

17

Swing speed

r/min

0~2.5

Hydraulic system

18

Rated working pressure

MPa

27

19

Rated working flow

L/min

400

20

Hydraulic oil tank capacity

L

600

Mass

21

Complete vehicle kerb mass

kg

32000

22

Front axle load

kg

15030

23

Rear axle load

kg

16970

Traveling

24

Max. traveling speed (forwards / backwards)

km/h

38/15

25

Wheelbase

mm

3820

26

Treads (front / rear)

mm

2444

27

Max. gradeability

%

57

28

Min. turning radius (outer edge of the vehicle body)

m

6.5



29

Min. turning radius (2 wheels)

m

11.25

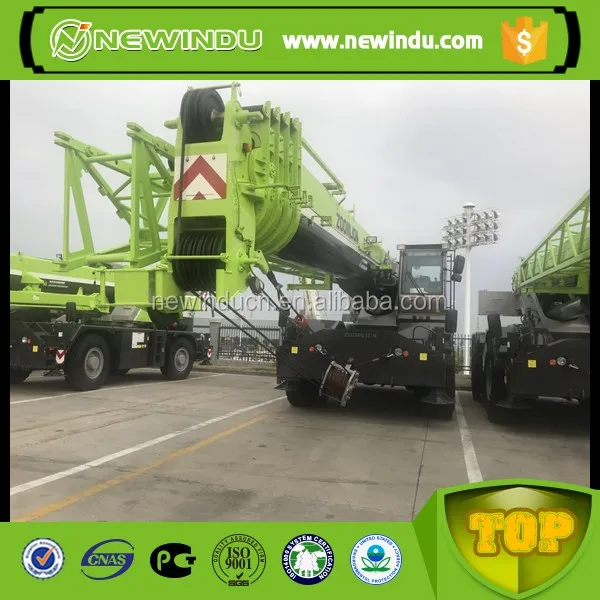

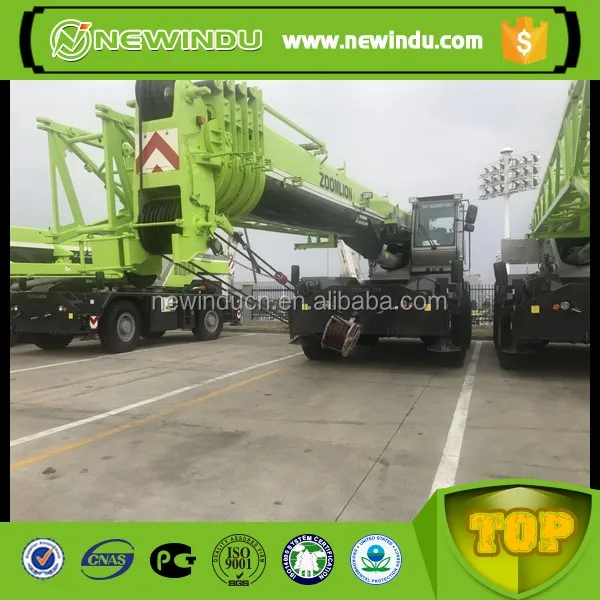

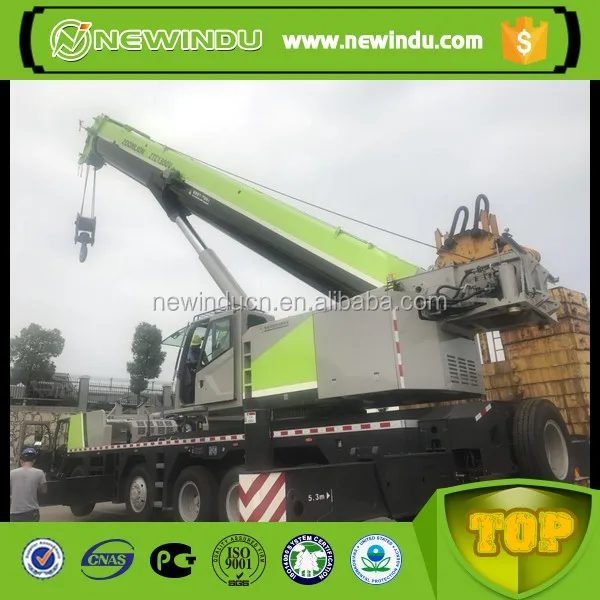

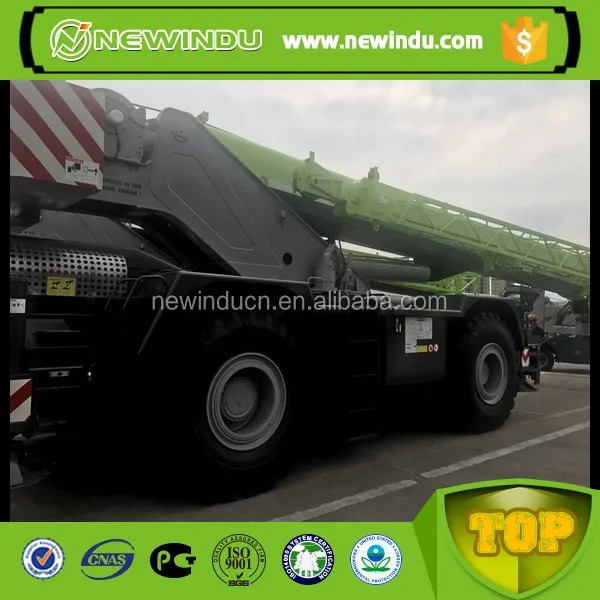

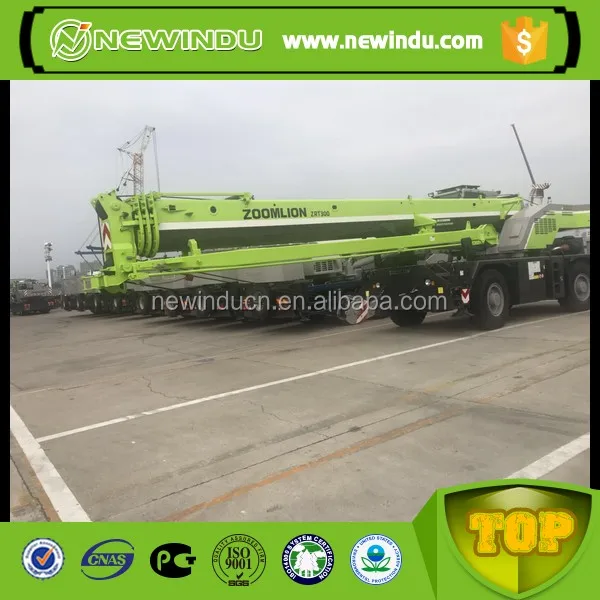

More Pictures for Zoomlion ZRT300 30 ton rough terrain crane:

 Zoomlion ZRT300 (3).jpg Zoomlion ZRT300 (4).jpg Zoomlion ZRT300 (7).jpg Zoomlion ZRT300 (8).jpg Zoomlion ZRT300 (11).jpg
