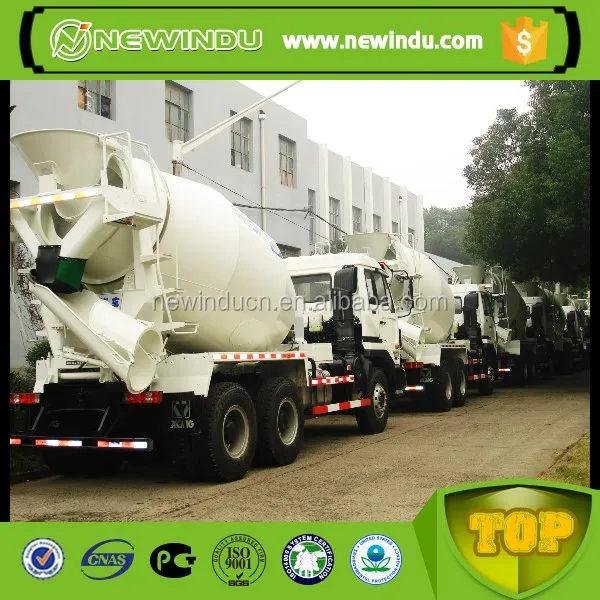

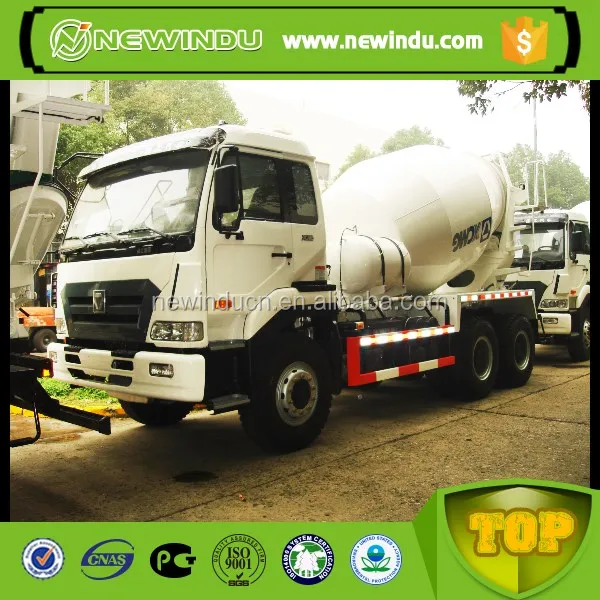

Brand new Xuzhou 6CBM HLB S9 series concrete mixer truck G06K hot sale in Thailand

FOB Reference Price:Get Latest Price
$52,000.00 - $176,000.00 / Piece | 1 Piece/Pieces (Min. Order)
Model Number:
G06K
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Charging Capacity:
≥ 8m3/min
Reclaiming capacity:
≥ 5m3/min
Mixing Power:
Hydraulic Motor
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
XC
Outline Dimension:
9800*2500*3995mm
Speed of Mixing Drum:
≥5 m3/min
Motor Power:
196 kW
Working Cycle Period:
60s
Water Supply Mode:
Hydraulic Pump
Discharge Way:
Hydraulic
Product name:
Concrete mixer truck G06K
Power type:
Diesel Engine Concrete Mixture Machine
Color:
White
Machine weight:
16000kg
Maximum allowable total mass:
16000kg
wheel base:
1800+3000+1400mm
Minimum ground clearance:
≥280mm
Cabin:
M3000
Engine:
Yuchai
Battery:
2x12/165V/Ah
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Nude package
Port
shanghai Qingdao Ningbo
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 15 To be negotiated

Contact way:
Sales Manager
April Chen


Newindu E-Commerce(Shanghai)Co.,Ltd.
Add:Suit 2801, Super ocean finance center,  No. 2067 West Yanan Road, Shanghai, China
Mobile/WeChat/WhatsApp/Skype :+86-135 8550 0864



Brand new Xuzhou 6CBM HLB S9 series concrete mixer truck G06K hot sale in Thailand

Features:

The heavy-duty truck design concept is adopted, and the high-strength connecting bolts are arranged, and the connection is reliable and durable; the mixing drum is made of high-strength wear-resistant material, and the frame is made of high-strength steel, which has stronger carrying capacity and long service life;

The whole vehicle adopts no sub-frame structure, the center of gravity is 100mm lower than the ordinary car, and the driving is more stable and safe; the front suspension is equipped with a horizontal stabilizer bar, and the rear suspension adopts a unique main and secondary spring structure, and the anti-rolling ability is strong;

The front and rear axles adopt enlarged and widened brakes, and the braking distance of the whole vehicle is shorter; the synchronous design of the upper chassis and the simulation of the multi-function calculation of the upper loading and the chassis are supplemented by the reliability test of the prototype 10,000 km to ensure safety and reliability;

The national four-emission engine, 180 horsepower, strong power; sophisticated technical matching, fuel-saving and environmental protection; increased flow air filter, optimized intake resistance, filtration efficiency is 30% higher than ordinary mixers;

Closed hydraulic system, easy to operate, easy to achieve stepless speed regulation, high efficiency, small reversing impact force; minimum turning diameter of 16m, flexible turning, convenient access; vertical structure headlights, beautiful atmosphere, wider range of illumination ;

Engineering vehicle professional rearview mirror, wider cab vision; 170L aluminum alloy large-capacity fuel tank, long cruising range; high-efficiency flushing system, large-capacity water tank, pneumatic water supply, freely flushable.

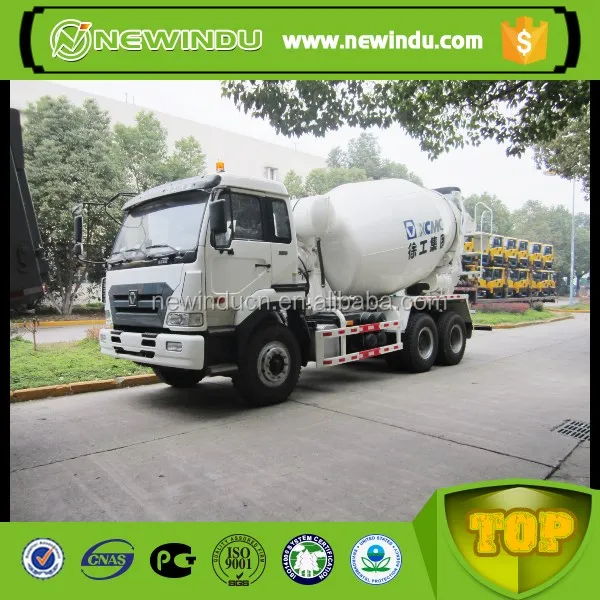

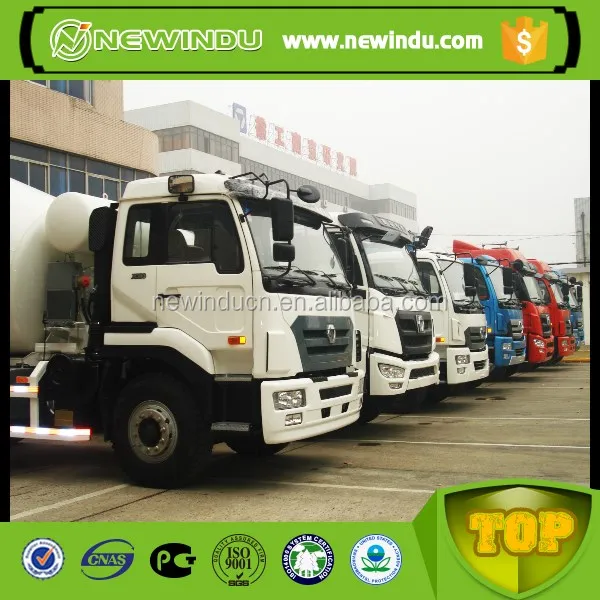

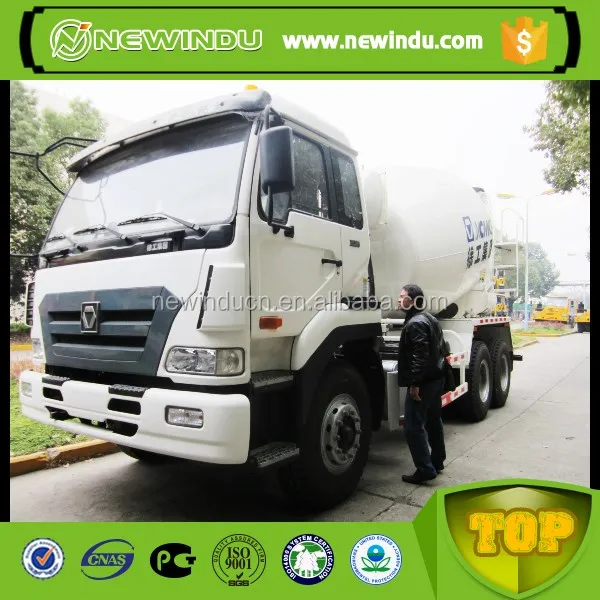

DSC02327.JPGDSC02331.JPGDSC02335.JPGIMG_0766.JPG 069.jpg 076.jpg



TypeModelUnitG10NX
Performance of mixing drumGeometric volume17.1
Mixing volume10
Maximum diameter of drum bodymm2380
Length of mixing drummm5447
Angle of inclination °13.5
Rotating speedr/min0~14
Charge speedm³/min≥3
Discharge speedm³/min≥2
Residue ratio of discharge%<0.7
Range of slumpcm5~21
Hydraulic systemOil pump international brand
Motor international brand
Reduction gears international brand
Hydraulic circuit Closed type
Water supplywater tank capacity L450
Way of water supply Pneumatic
Complete machineBrand of chassis XCMG NAC
Chassis model NXG3250D3KCLX
Type of driving Left-hand drive
Curb weightkg14000
maximum gross weightkg25000
Driving type 6×4
Wheel basemm4000+1350
Tyre 12.00R20
Means of power takeoff Power takeoff by flywheel
Notice model
External dimensions(length×width×height)mm
EngineModel WP10.336N/WP10.340E32
Rated powerKw/r/min247
DisplacementL9.726
Emission standard GB III
