NEWINDU 16ton vibratory road roller XS163J

FOB Reference Price:Get Latest Price
$30,000.00 - $60,000.00 / Units | 1 Unit/Units (Min. Order)
Static Linear Pressure:
362N/cm
Model Number:
XS163J
Report Suspicious Activity
Overview
Quick Details
Power(W):
115KW
Travel Speed:
0-12km/h
After-sales Service Provided:
Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Warranty:
1 Year
Condition:
New
Type:
Single Drum Roller
Grade Ability:
55%
Place of Origin:
Jiangsu, China
Brand Name:
NEWINDU
Dimension(L*W*H):
5640*2258*2970mm
Weight:
12000kg
Certification:
ISO9001
Static linear load:
362N/cm
Vibration frequency:
28hz
Grade ability:
30%
Turning radius:
6415mm
Diesel model:
SC8D156.2G2B1
Operating mass:
16000kg
Hydraulic oil tank capacity:
170L
Fuel tank capacity:
240L
Other character:
16ton road roller capacity
Supply Ability
Supply Ability:
20 Unit/Units per Month
Packaging & Delivery
Packaging Details
Nude-packing
Port
Shanghai
Product Description

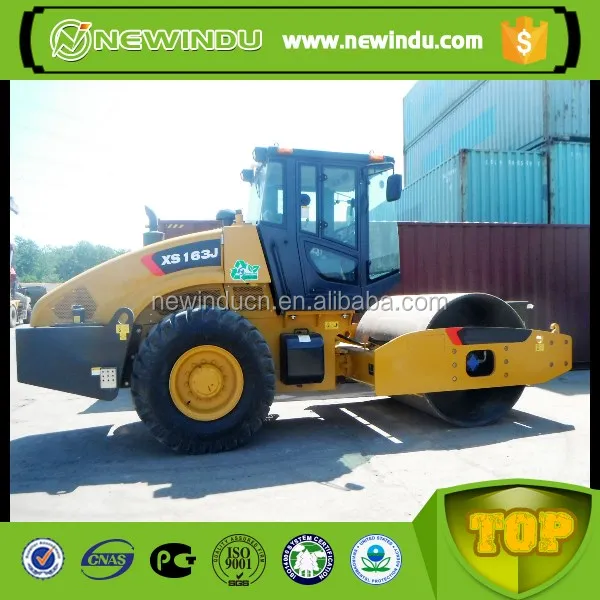

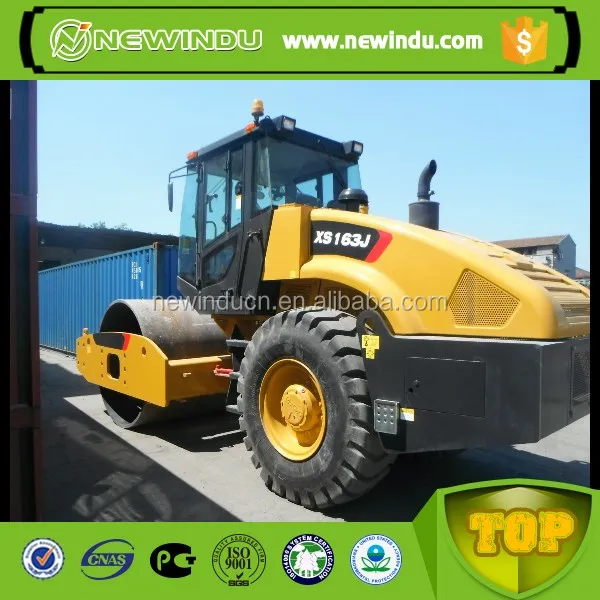

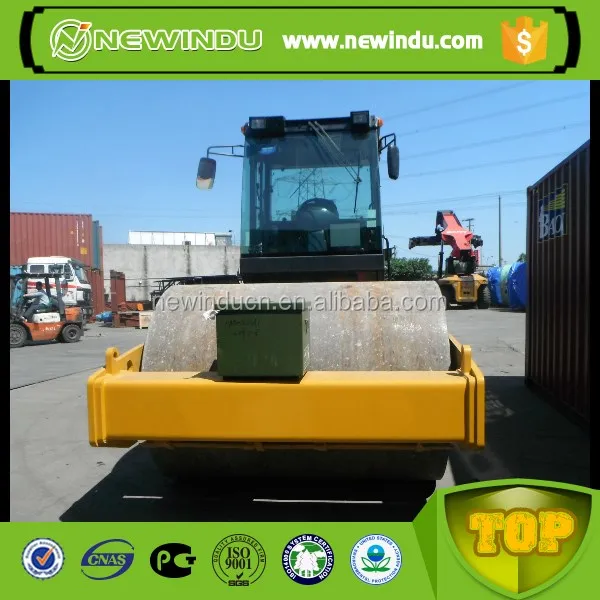

XC.MG 16ton new road roller XS163J model





Comfortable driving
ROPS driving cab is equipped with an air conditioner, radio and suspended chair. It has a bigger space and broad view inside.


Unique structure
Unique cylindrical drum structure features high rigidity and intensity. Short cylindrical bearing with high limited rotation speed provides high load - carrying capacity. The symmetrical arrangement of the right and left vibration chambers avoids the polarization of the vibratory drums.


Easy operation
According to the ergonomics theory, all meters, indicators and buttons are centered on the operation panel. The throttle handle and FWD/REV handle are put on the right side to improve the sense of comfort.
The failure diagnosis screen with alarms can avoid any unnecessary downtime.
The simple and easy lubrication mode ensures an extremely low failure rate of the lubricating system.



ModelUnitXS163J
Operating weightkg16000
Weight on front drumkg7700
Static linear pressureN/cm362
Speed rangekm/h
Speed I 2.54
Speed II 4.97
Speed III 10.51
Theoretical gradeability%30
Min. external turning radiusmm6500
Steering angle°±33
Oscillating angle°±11
Vibration frequencyHz28
Nominal amplitude (high/low)mm1.9/0.95
Excitation force (high/low amplitude)kN290/145
Engine model SC8D156.2G2B1
TypeWater cooled, pressurizedWater cooled, pressurized
Max. powerkW115@1800r/min
Engine oil consumptiong/kW.h223
Hydraulic oil tank capacityL170
Fuel tank capacityL240
