NEWINDU 14ton single drum road roller capacity XS143J

FOB Reference Price:Get Latest Price
$30,000.00 - $60,000.00 / Unit | 1 Unit/Units (Min. Order)
Static Linear Pressure:
385N/cm
Model Number:
XS143J
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Power(W):
110KW
Travel Speed:
0-12km/h
Warranty:
1 year
Condition:
New
After-sales Service Provided:
Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Place of Origin:
Henan, China
Brand Name:
NEWINDU
Certification:
ISO9001
Type:
Single Drum Roller
Dimension(L*W*H):
5640*2258*2970mm
Grade Ability:
55%
Static linear load:
385N/cm
Vibration frequency:
28/35hz
Grade ability:
55%
Turning radius:
6415mm
Diesel model:
B5.9
Operating mass:
14000kg
Hydraulic oil tank capacity:
240L
Fuel tank capacity:
240L
Other character:
14ton road roller capacity
Weight:
12000kg
Supply Ability
Supply Ability:
20 Unit/Units per Month
Packaging & Delivery
Packaging Details
Nude-packing
Port
Shanghai
Product Description

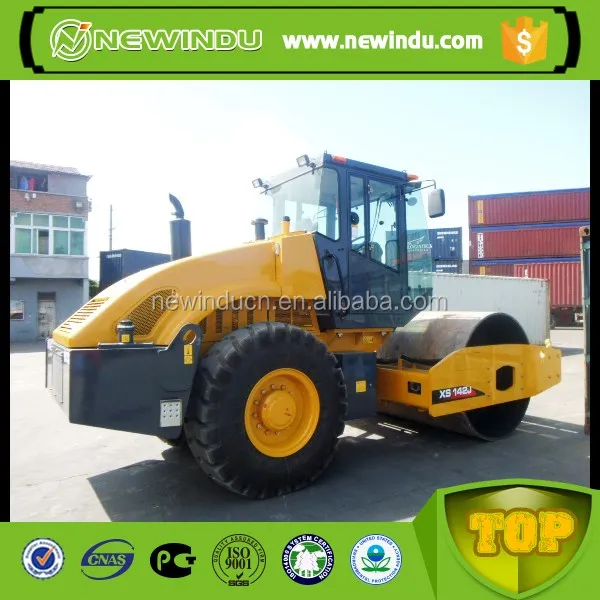

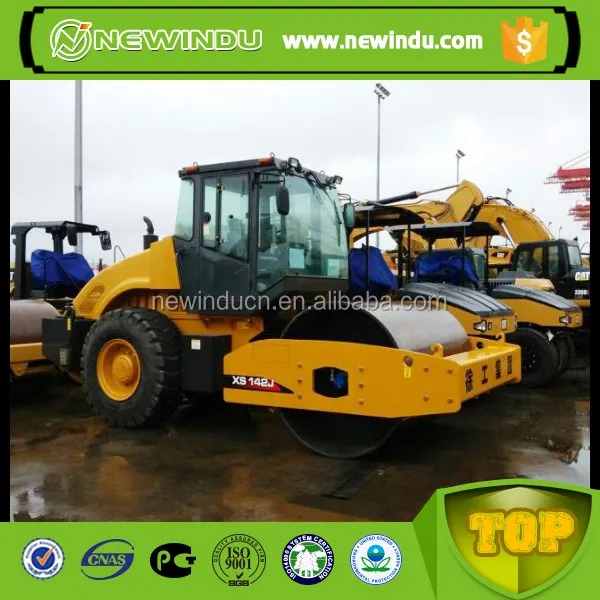

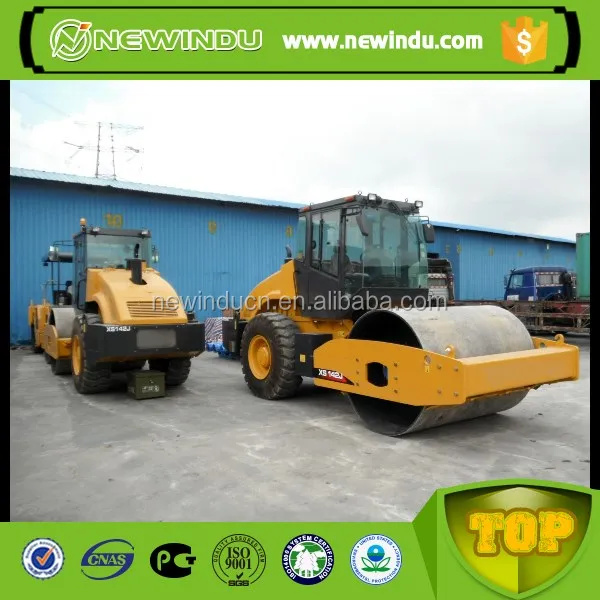

NEWINDU 14ton new road roller XS143J model capacity





Comfortable driving
ROPS driving cab is equipped with an air conditioner, radio and suspended chair. It has a bigger space and broad view inside.
Unique structure
Unique cylindrical drum structure features high rigidity and intensity. Short cylindrical bearing with high limited rotation speed provides high load - carrying capacity. The symmetrical arrangement of the right and left vibration chambers avoids the polarization of the vibratory drums.
Easy operation
According to the ergonomics theory, all meters, indicators and buttons are centered on the operation panel. The throttle handle and FWD/REV handle are put on the right side to improve the sense of comfort.
The failure diagnosis screen with alarms can avoid any unnecessary downtime.
The simple and easy lubrication mode ensures an extremely low failure rate of the lubricating system.



TypeUnitXS142
Operating weightkg14000
Load on front drumkg8200
Load on rear wheelskg5800
Drum widthmm2130
Static linear loadN/cm385
Vibration frequency(Low/High)Hz28/35
Nominal amplitude(High/Low)mm1.86/0.88
Excitation force(High/Low)KN305/225
Travel speedkm/h0~12
Steering angle°±33
Swing angle°±10
Theoretical  gradeability%55
Min. external turning radiusmm6415
Engine model  B5.9
Engine powerkw110
Rated engine speedr/min2200
Engine oil consumptiong/kW.h232
Hydraulic oil tank capacityL240
Fuel tank capacityL240
