Brand New GR100 Small Motor Grader 100HP Sale in Thailand

FOB Reference Price:Get Latest Price
$40,000.00 - $50,000.00 / Units | 1 Unit/Units (Min. Order)
Model Number:
GR100
Weight:
16500kg
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Forward Speed(km/h):
550
Reverse Speed(km/h):
450
Warranty:
1 Year
After-sales Service Provided:
Overseas service center available, Engineers available to service machinery overseas, Overseas third-party support available
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Chinese Brand
Dimension(L*W*H):
8310*2440*3360mm
Certification:
ISO
Product name:
GR100 100HP Motor Grader
Model:
GR100
Color:
Yellow
Engine:
Yuchai
Brand:
Chinese Brand
Engine Model:
GR100
Name:
GR100
Rated Power:
138kW
Type:
Wheel Manual Motor Grader
Location:
Shanghai
Supply Ability
Supply Ability:
40 Unit/Units per Month GR100 100HP Motor Grader
Packaging & Delivery
Packaging Details
GR100 100HP Motor Grader Could Be Loaded By Container, RoRo, Flat Rack, Bulk Vessel.
Port
Shanghai

Brand New GR100 Small Motor Grader 100HP Sale in Thailand

he XCM GR Series Motor Graders are mainly used in ground leveling ,canalling , slope scraping ,earthmoving ,scarification or snow removal work on road, airfield ,farmland ,and so on .They are necessary construction machines for national defense engineering ,mine construction, town and country roads building ,and farmland improvement..

Performance and characteristic

New appearance design.





Basic specification

Engine model

4BT3.9

Rated power/speed

75/2400kw/rpm

Dimension(LxWxH)

6880×2375×3150mm

Operating weight(Standard)

7000kg

Performance specification

Travelling speed ,forward

5,10,20,39km/h

Travelling speed ,reverse

8,25km/h

Tractive force(f=0.75)

41.6KN

Max. gradeability

20%

Tire inflation pressure

350KPa

Working hydraulic pressure

16MPa

Transmission pressure

1.3~1.8MPa

Operating specification

Max. steering angle of front wheels

±50°

Max. lean angle of front wheels

17°

Max. oscillation angle of front axle

±15°

Max. oscillation angle of balance box



Frame articulation angle

±27°

Min. turning radius using articulation

5.9m

Biade

Maximum lift above ground

300mm

Maximum depth of cutting

350mm

Maximum blade position angle

45°

Blade cutting angle

28°—70°

Circle reversing rotation

120°

Moldboard width X height

3048×500mm

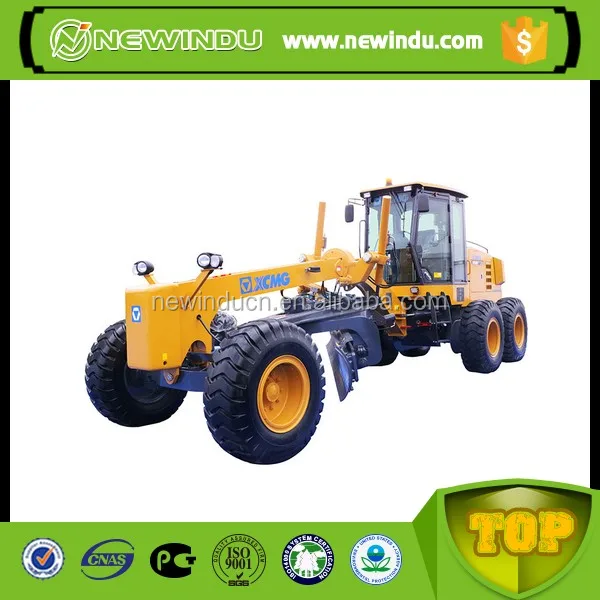

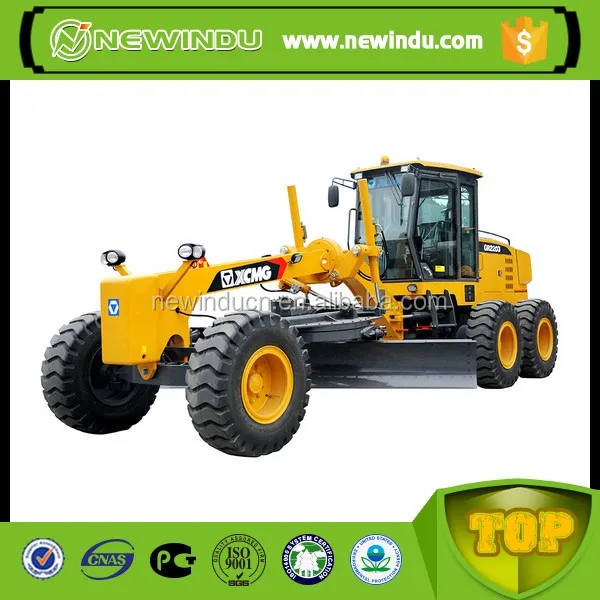

More Pictures for XCM GR135 Motor Grader:
