Top sale XS163J 16ton static road roller for sale in India

FOB Reference Price:Get Latest Price
$32,500.00 - $36,600.00 / Unit | 1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Power(W):
115kw
Travel Speed:
10.51km/h
Static Linear Pressure:
362N/cm
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
XC
Model Number:
XS163J
Certification:
ISO:9001,CE
Type:
Single Drum Roller
Dimension(L*W*H):
6010*2340*3200mm
Grade Ability:
30%
Diesel model:
SC5D125G2B1
Weight:
16000kg
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
Nude package
Port
Shanghai,Ningbo
Lead Time :
in 7-10 days after disposit received

Contact way:
Sales Manager
April Chen
Newindu E-Commerce(Shanghai)Co.,Ltd.
Add:Suit 1326, Fortune Times Tower, No. 1438 North Shanxi Road, China
Mobile/WeChat/Skype/Whatsapp :+86-135 8550 0864



Top sale XS163J 16ton static road roller for sale in India

Performance feature:
•The spacious and bright cab features wide view and comfort.
Simple operation
•The humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance.
•Adopt the gearbox with synchronizer, which is easy to operate.
•The special compactor drive axle has the function of preventing slipping, featuring strong traction.
Reliable and durable hydraulic system
•The standard configuration includes imported open gear pump and motor. The optional configuration includes closed hydraulic vibration system, imported piston pump, motor (16t, 18t). All those have a long service life, supplying stable start-oscillation and oscillation stop and high compacting quality.
Energy-saving and environmental friendly power
•Shanghai Diesel Engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.
High efficient and reliable vibratory compacting system
•Unique drum structure features good rigidity and intensity. The bearing adopts short cylindrical bearing, featuring high rotary speed limit and strong bearing capacity. The left vibration chamber and right vibration chamber are symmetrical, avoiding the polarization of the drum.
Optional configuration
•The integral convex block drum, split convex block drum, and the cab with air conditioning.
Convenient maintenance
•The engine cover is easy to open, and the opening angle is large, which make the maintenance part accessible.
•The high positioned air intake prolongs the maintenance interval of the air filter.

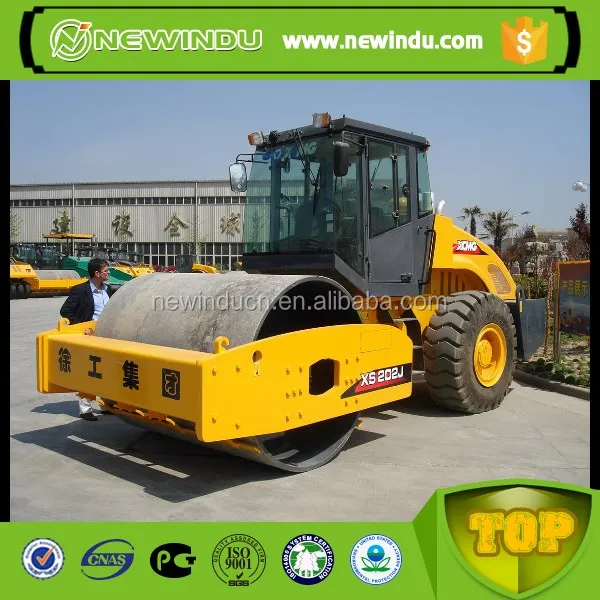

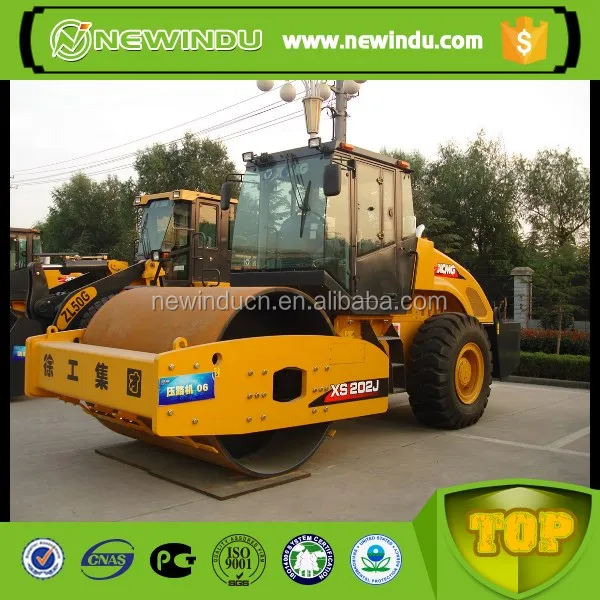

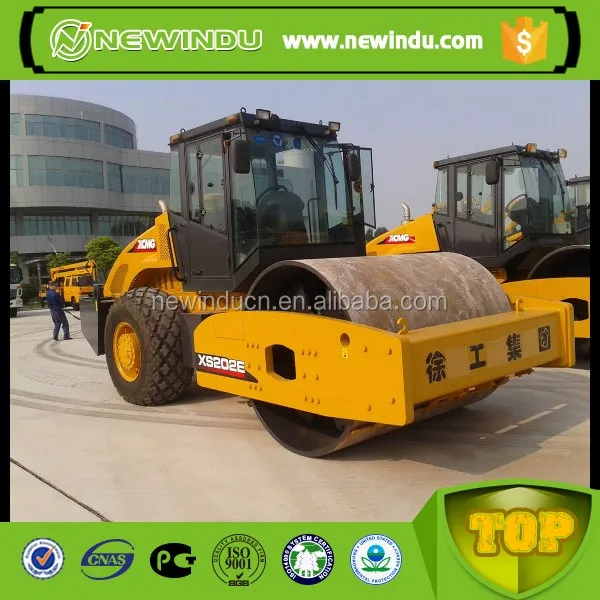

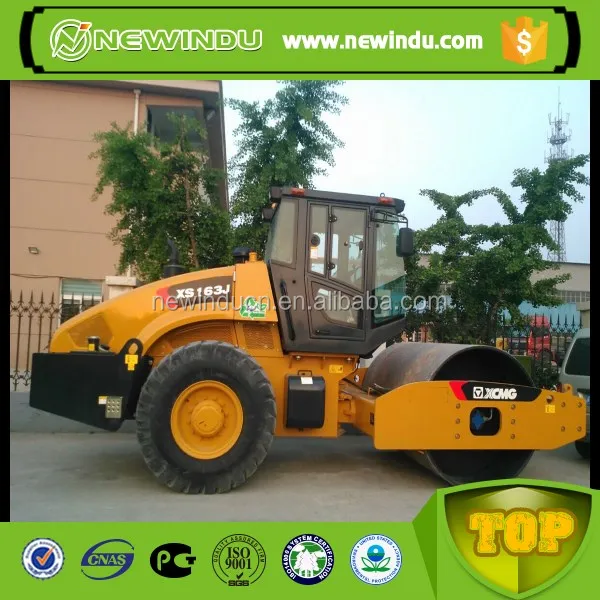

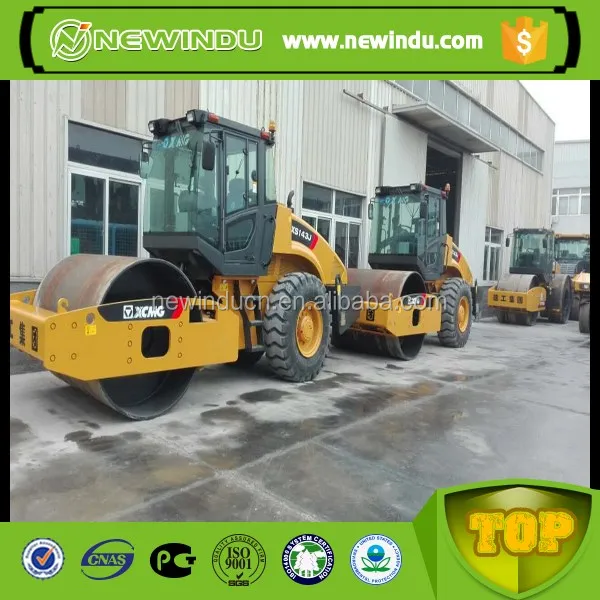

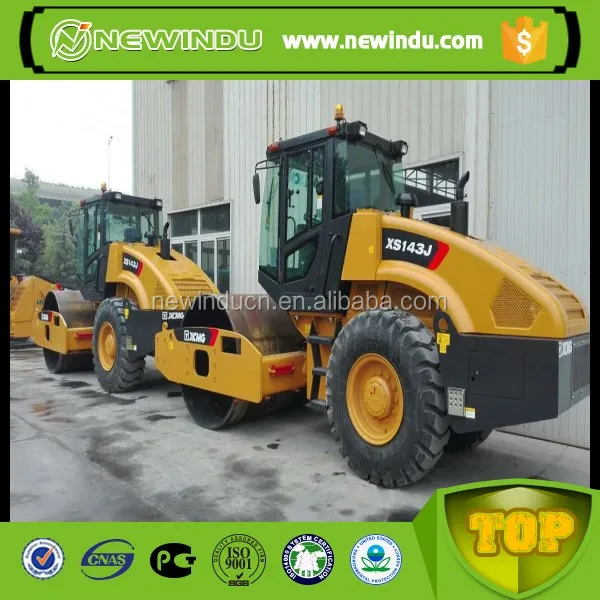

XS143J (2).jpgXS143J (3).jpgXS163J.jpgXS202E.jpgXS202J (1).JPGXS202J (2).JPG

 Parameter:



Model

Unit

XS163J

Operating weight

kg

16000

Load applied on front drum

kg

7700

Static linear load

N/cm

362

Speed range

km/h

F/R

Gear I

km/h

2.85/2.88

Gear II

km/h

5.08/5.02

Theoretical gradeability

%

30

Min. outer turning radius

mm

6500

Steering angle

°

±30

Vibration frequency

Hz

28

Nominal amplitude (high/low)

mm

1.9/0.95

Exiting force (high/low amplitude)

kN

290/145

Engine model



Shanghai Diesel Engine SC4H140.192

Type



/

Max. power

kW

103

Hydraulic tank capacity

L

170

Fuel tank capacity

L

310
