New road roller double drum roller road XD111E machine

FOB Reference Price:Get Latest Price
$36,000.00 - $41,000.00 / Unit | 1 Unit/Units (Min. Order)
Static Linear Pressure:
40~70kN
Model Number:
XD111E
Engine:
shangchai
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Power(W):
98kw
Travel Speed:
70
Warranty:
1 year
Condition:
New
After-sales Service Provided:
Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Place of Origin:
Jiangsu, China
Brand Name:
XG
Certification:
ISO
Type:
Double Drum Roller
Dimension(L*W*H):
4880*1980*2800mm
Grade Ability:
30%
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Engine Brand:
other
Hydraulic Pump Brand:
other
Hydraulic Valve Brand:
other
Color:
Yellow
Speed:
0-10km/h
Min. ground clearance:
4050/5950mm
Fuel tank capacity:
210L
Weight:
11300kg
Supply Ability
Supply Ability:
50 Unit/Units per Month
Packaging & Delivery
Packaging Details
container roro bulk break shipment
Port
shanghai
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 To be negotiated

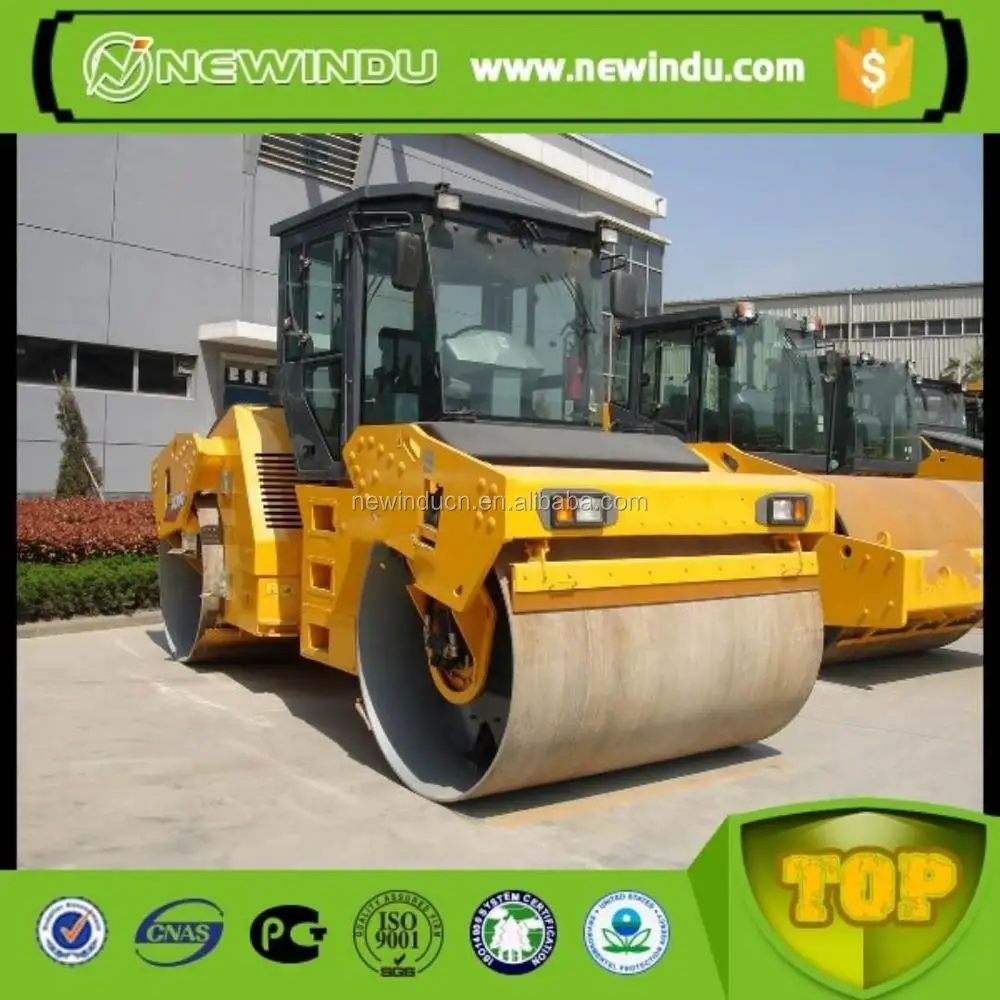

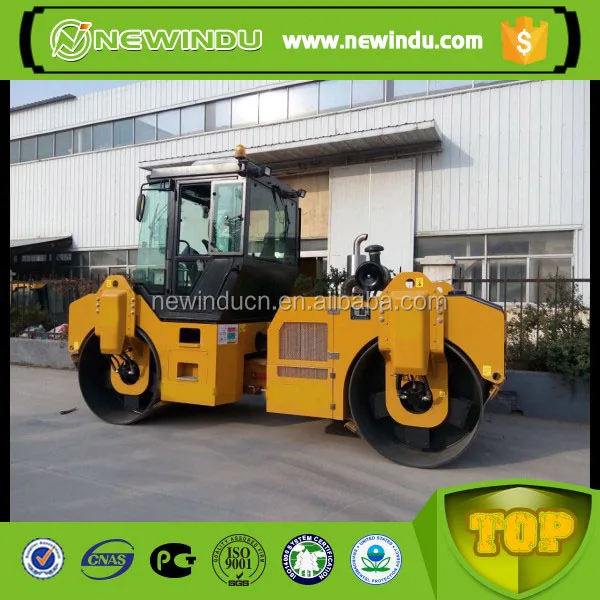

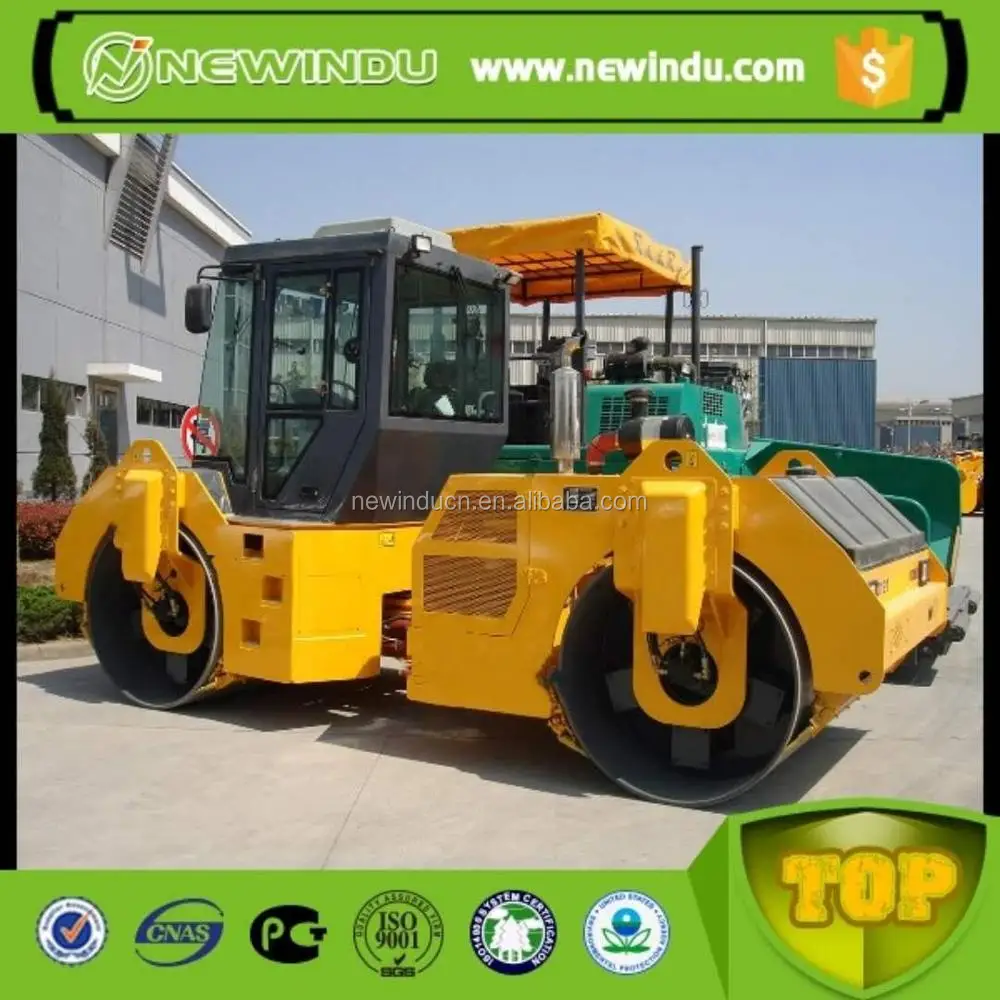

New double drum roller road XD111E machine

Feature
Comfortable driving
Spacious and bright cab features wide visibility and comfortability, and the suspensible seat, speaker and safety belt are equipped in the cab.
Unique structure
XCG unique cylinder structure features strong rigidity and strength, and it adopts the special bearing, high limit speed and strong carrying capacity to avoid the polarization of the vibrating drum.
The lubrication method of the vibration bearing is simple and convenient, and the fault of the lubrication system is low.
Convenient operation
The control panel could be adjusted in 180 degrees, and the operator could easily operate the machine during Forward and Reverse, and each compaction mode has good visibility.
It adopts hydraulic drive and electric-hydraulic control technology, contributing to simple operation.
Automatic watering and vibrating system improves the flatness of the road compaction.
XCG patented crab mechanism and dual-articulated steering could ensure staggering distance of 200mm between the front and rear drums, which is convenient for the side compaction and turning compaction. When the dual-articulation is activated simultaneously, the min. turning radius could be 6000mm.
Adjustable resin mud-scraper features easy operation.
Leading in industry of compaction and watering function
The vibration frequency is adjustable in certain range, two gears of amplitude adapt to the asphalt compaction of different depth.
The unique separate vibration function. The front and rear drums could vibrate at the same time, and the drum could vibrate separately, improving the compaction efficiency.
Excellent configuration
The key imported parts: imported hydraulic plunger piston and motor feature higher centrifugal force and theoretical gradeability. The watering pump and vibration bearing are all of imported parts. There are multiple configurations for the engine to choose to meet various conditions.
Large capacity plastic water tank, three-stage filtering, and double watering systems and interval 7-gear watering ensure the smooth watering.
Convenient repair
The engine hood could be opened from three sides, and the engine and hydraulic pump and each control valve could be checked easily

Parameters

TypeUnitXD111E
Operating weight (including cab)kg11300
load on front drumkg5650
Load on rear wheelskg5650
Static linear load N/cm298/298
Speedkm/h0—10
Gradeability in theory%30
Minimum turning radiusmm4050/5950
Crab-walking distancemm160
Minimum ground clearancemm340
Wheel basemm3700
Steering angle± °35
Swing angle±°8
Vibration frequencyHz45—48
Nominal amplitude mm0.41/0.8
Centrifugal forcekN80/133
Model and manufacturer BF4M2012C
Rated rotating speedr/min2300
Rated powerkW98
Rated oil wearg.kw/h205
Water tank capacityL2×450
Fuel tank capacityL210
