new pneumatic tyre roller 20ton tyre road roller capacity

FOB Reference Price:Get Latest Price
$40,000.00 - $60,000.00 / Units | 1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview

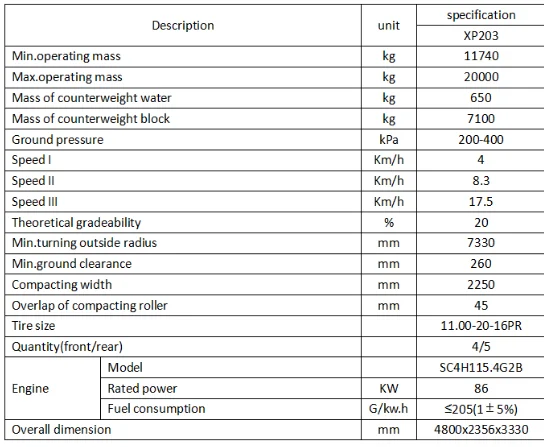

Quick Details
Power(W):
86KW
Travel Speed:
0-17.5m/h
Static Linear Pressure:
385N/cm
Condition:
New
Type:
Tire Roller
Grade Ability:
20%
Place of Origin:
Henan, China
Brand Name:
NEWINDU
Model Number:
XP203
Dimension(L*W*H):
5640*2258*2970mm
Weight:
26000kg
Certification:
ISO9001
Overall dimension:
4800x2356x3330mm
Min. ground clearance:
290mm
Grade ability:
20%
Turning radius:
9000mm
Diesel model:
SC4H115.4G2B
Operating mass:
20000kg
Hydraulic oil tank capacity:
100L
Fuel tank capacity:
180L
Other character:
NEWINDU 20ton road roller capacity
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
20 Unit/Units per Month
Packaging & Delivery
Packaging Details
Nude-packing
Port
Shanghai
Lead Time :
30 days after receiving deposit
Product Description

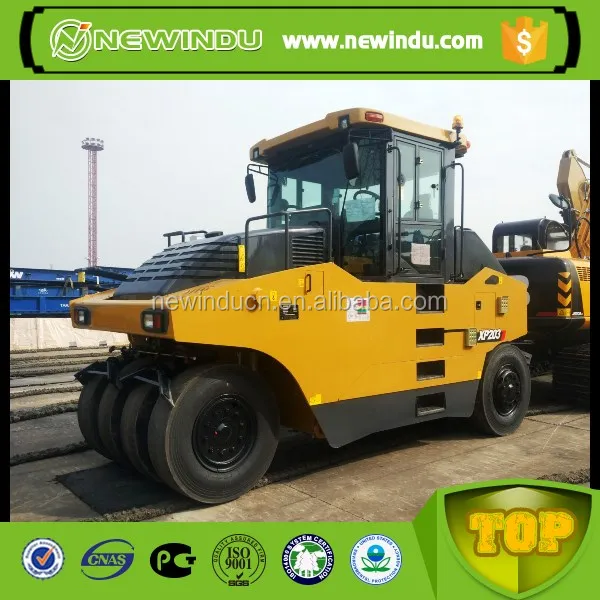

 NEWINDU 20ton Tyre road roller XP203 model



Features
Shangchai SC4H115.4G2B Engine
Chinese brand axle
Water spray
Optional A/C, oil spray device



Driving comfort
Spacious and bright cab features wide view and comfort. Both-side operation can absolutely avoid rolling the curb and the compacting blind corners.
Simple operation
There are two steering wheels, two seats, and two independent control systems for operations. The speed change adopts electric control handle and two-speed gear shift design, which can respectively meet the requirements of compaction and site transfer, together with flexible electronic control operation and comfortable handfeel, greatly reduces the labor intensity of the drivers.
Excellent performance
Adopting the pneumatic tyre to compact the layer will not damage the compacted materials. The compact performance can be improved by adding or reducing the counterweight and changing the inflation pressure of the tyres. Because of the kneading effect produced by the tyre’s elasticity, the material displacement will be produced in all directions, forming even dense surface without cracks, which can prolong the service life of the road.
Adopt the front wheels swing mechanism. When the machine works on rough road, the mechanism ensures the even ground pressure, which can make the materials be compacted evenly.
The optional international leading infrared tyre heating system realizes the no water sprinkling work of the compactor, and improves the density and service life of the road.
Unique structure
The transmission system adopts the hydraulic transmission with infinitely variable speeds. The start of the torque converter and the speed change are stable and without impact, reducing the shear stress to the road, and improving the compacting quality. The torque converter adopts hydrodynamic drive, which makes the compactor have adaptivity, ensures the diesel engine and the transmission system work under the rated working condition, and prolongs the service life of the compactor.
