grader gd511 motor grader spare parts tractor mounted grader

FOB Reference Price:Get Latest Price
$55,500.00 - $56,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
GR135
Weight:
11000kg
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Forward Speed(km/h):
30
Reverse Speed(km/h):
42
Warranty:
1 year
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
NEWINDU
Certification:
ISO
Dimension(L*W*H):
8015x2380x3050mm
Engine Model:
6BT5.9
Rated Power:
100/2200kw/rpm
Maximum lift above ground:
410mm
Maximum depth of cutting:
535mm
Blade cutting angle:
28°-70°
other character:
tractor mounted grader
After-sales Service Provided:
Overseas service center available, Engineers available to service machinery overseas, Overseas third-party support available
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
nude packing
Port
Shanghai
Product Description

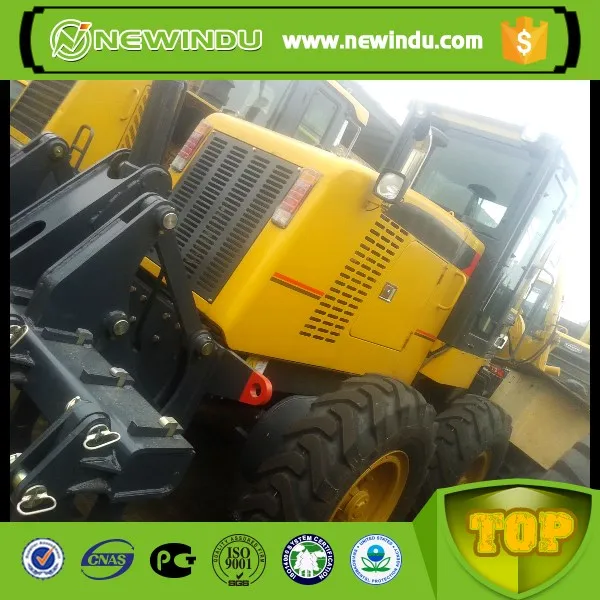

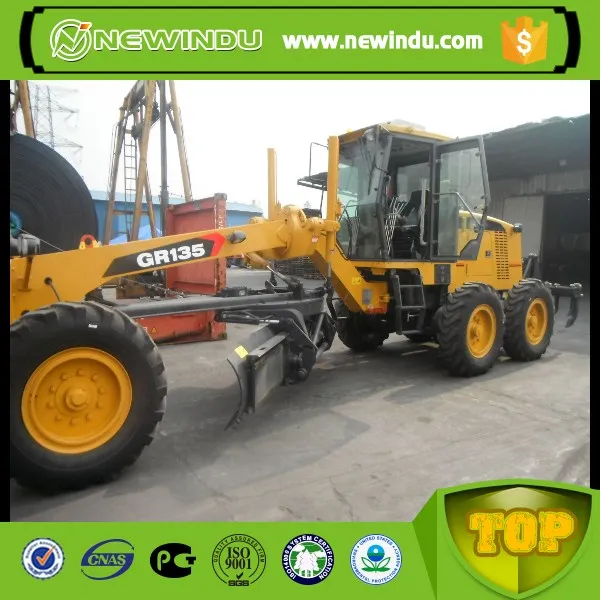

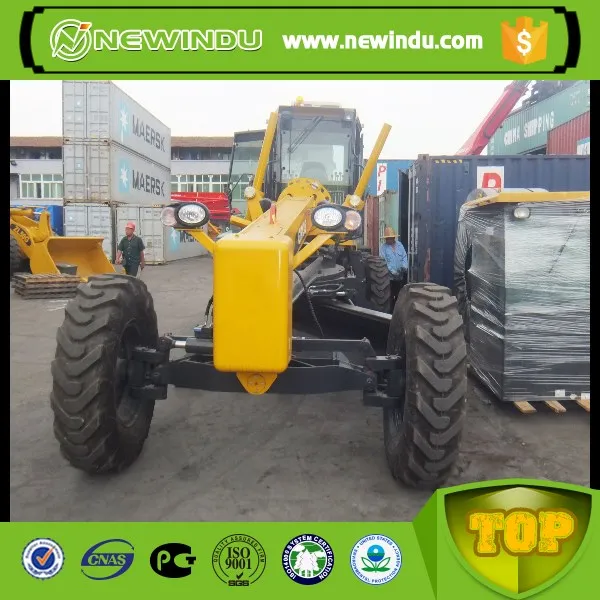

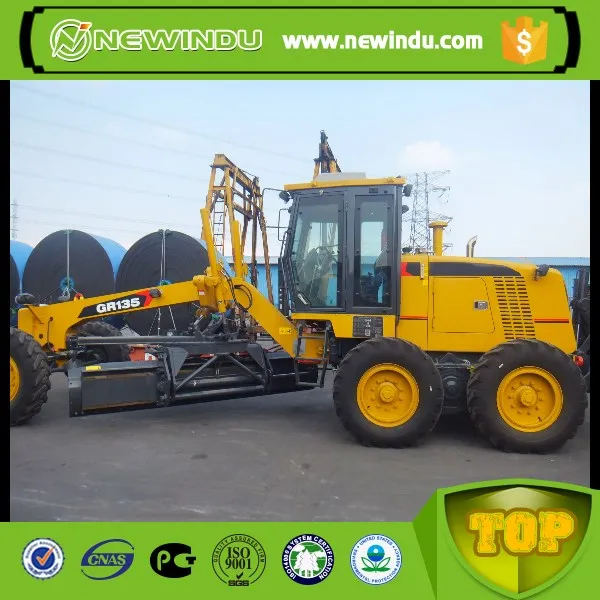

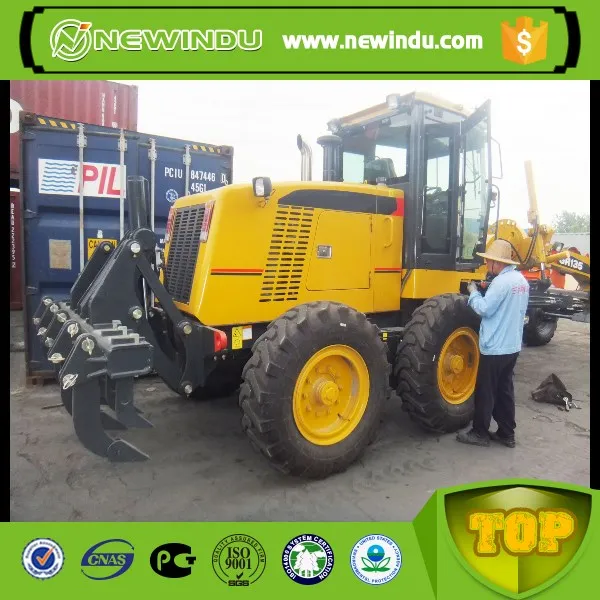

 GR135 Motor Grader for sale!!!

 Main Features:



Engine model: 6BT5.9
Rated power/speed: 100/2200kw/rpm
Dimension(LxWxH) : 8015×2380×3050mm
Operating weight(Standard): 11000kg

We can also provide you with more spare parts as you wish!






Basic specification

Engine model6BT5.9
Rated power/speed100/2200kw/rpm
Dimension(LxWxH)8015×2380×3050mm
Operating weight(Standard)11000kg

Performance specification

Travelling speed ,forward5,8,13,20,30,42km/h
Travelling speed ,reverse5,13,30km/h
Tractive force(f=0.75)61.3KN
Max. gradeability20%
Tire inflation pressure300kPa
Working hydraulic pressure16MPa
Transmission pressure1.3~1.8MPa

Operating specification

Max. steering angle of front wheels±49°
Max. lean angle of front wheels±17°
Max. oscillation angle of front axle±15°
Max. oscillation angle of balance box16
Frame articulation angle±27°
Min. turning radius using articulation6.6m

Biade

Maximum lift above ground410mm
Maximum depth of cutting535mm
Maximum blade position angle90°
Blade cutting angle28°—70°
Circle reversing rotation360°
Moldboard width X height3710×610mm
